Electrical systems power everything, from manufacturing floors to office buildings. Their reliability is absolutely critical to smooth operations, but some facility managers overlook one important maintenance practice: infrared scanning.
Why is performing infrared (IR) scans on power whips for hotspots extremely valuable? For one, it’s an effective preventive maintenance strategy that electrical professionals can leverage to prevent downtime and dangerous electrical failures.

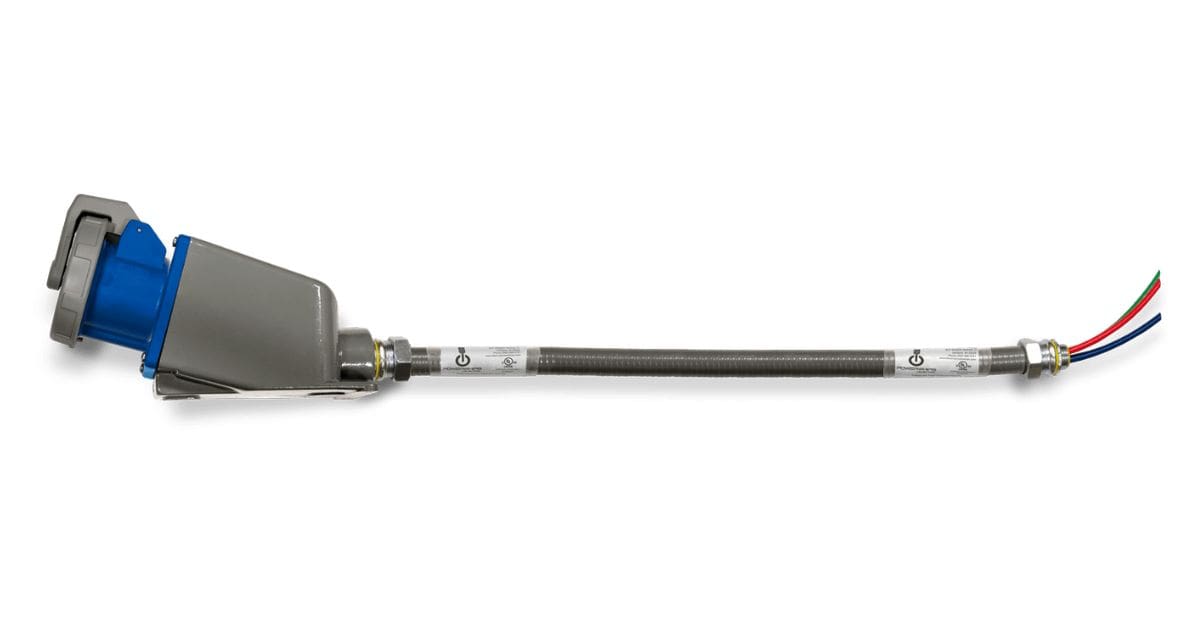

Power whips are flexible electrical connectors linking fixed electrical infrastructure to equipment. They endure constant stress from vibration, movement, and thermal cycling. These conditions cause electrical connections to loosen over time. When connections deteriorate, they generate excess heat that infrared technology can detect long before visible signs of failure appear.
Continue reading to uncover more about this preventative maintenance task.
Power Whip Vulnerabilities
Power whips are particularly susceptible to electrical problems. These flexible connections must accommodate equipment movement while maintaining secure electrical contact. The constant flexing motion can gradually loosen connections at termination points, creating resistance that generates heat.
Environmental Stressors
Dust accumulation on connection points increases resistance, while temperature fluctuations cause expansion and contraction cycles that weaken power whip connections. Vibration from nearby equipment can also accelerate connection degradation, particularly in industrial settings where heavy machinery operates continuously.
Multiple Connection Points
The design of power whips also contributes to their vulnerability. Multiple connection points create numerous potential failure locations, and each termination represents a possible weak link where resistance can arise. Unlike fixed electrical connections that remain static, power whip connections undergo dynamic loading, which repeatedly tests their integrity.
Manufacturing variations in connection hardware can create additional risk factors. Slight differences in contact surface quality or torque specifications during installation may not cause immediate problems. Nevertheless, they can result in accelerated degradation. These subtle variations remain invisible during standard visual inspections, but they become apparent through thermal imaging.
The Science Behind Thermal Detection
Infrared scanning works by detecting the heat signatures that electrical resistance creates. When electrical connections begin to deteriorate, increased resistance converts electrical energy into thermal energy. This heat generation follows predictable patterns that trained thermographers can identify and interpret.
The relationship between electrical resistance and heat generation follows well-established electrical principles. Even small increases in connection resistance produce measurable temperature rises. Temperature differences are visible through infrared cameras as distinct thermal patterns that contrast with surrounding areas.
Early-stage connection problems typically produce temperature increases of just a few degrees above normal operating levels. However, advanced infrared equipment can detect subtle variations, providing an early warning before problems escalate. As connections continue to deteriorate, temperature differences become more pronounced, indicating serious conditions.
Visual inspections may miss loose connections that show no external signs of distress yet generate significant heat. By the time visual indicators appear, such as discoloration and arcing damage, the electrical system is already in advanced failure.
To replace power whips promptly, Electrol PowerWhips is ready to assist! Whether you’re upgrading your current setup or need a reliable replacement, our high-quality power whips will meet your project requirements.
Critical Benefits of Proactive Scanning
Regular infrared scanning of power whips delivers measurable operational benefits that justify the investment in thermal inspection programs. Early problem detection enables maintenance teams to address issues during planned downtime rather than emergency situations.
Safety improvements represent another noteworthy benefit of thermal scanning programs. Electrical failures in power whips can create arc flash conditions that pose serious injury risks to personnel. Identifying problems before they reach critical stages protects workers from dangerous situations while maintaining safe working environments.
Equipment reliability also improves when thermal scanning identifies developing problems before they directly impact operations. Consistent power delivery extends equipment life by eliminating the stress that voltage fluctuations and power interruptions create.
Optimal Scanning Frequency and Timing
Determining appropriate scanning intervals requires balancing detection effectiveness with resource allocation. Extremely critical applications may require monthly thermal surveys, while less dire systems can function safely with quarterly inspections. The operating environment will greatly influence optimal scanning frequency, with harsh conditions requiring more frequent monitoring.
Seasonal factors also affect thermal scanning effectiveness and should influence scheduling decisions. Ambient temperature variations can mask or exaggerate thermal anomalies, making consistent environmental conditions preferable for accurate measurements. However, spring and fall often provide ideal conditions for thermal surveys, as they avoid extreme seasonal temperatures.
Load conditions during scanning can also impact detection accuracy. Thermal problems become most apparent when electrical systems operate under normal or high-load conditions. Scanning during low-load periods may miss developing issues that only become evident under typical operating conditions.
Track problem development over time by getting documentation support from thermal scanning programs. Consistent recording of thermal data enables trend analysis that can predict failure progression and help maintenance teams prioritize repairs based on problem severity and development rates.
Professional Implementation Standards
Effective thermal scanning requires proper equipment calibration and operator training to ensure accurate results. Infrared cameras must maintain calibration standards that enable precise temperature measurements across expected operating ranges. Frequent calibration verification prevents measurement errors that could lead to missed problems or false alarms.
Operator certification can ensure consistent scanning techniques and accurate interpretation of thermal data. Certified thermographers understand how environmental factors influence measurements and can adjust strategies accordingly.
Standardized inspection procedures promote consistent results across different operators and periods. Written protocols specify camera settings, measurement techniques, and documentation requirements that support the reliability of thermal surveys. These standards enable accurate comparison of results between inspection cycles.
Quality assurance measures verify that thermal scanning programs deliver intended results, while regular audits of scanning procedures and documentation practices identify opportunities for improvement. Continuous improvement is the key to maintaining effective thermal programs over time.
Take Action and Prioritize Electrical Safety
The electrical systems supporting your operations deserve the same attention you give to other critical infrastructure components. Performing IR scans on power whips for hotspots provides an essential layer of protection that prevents costly failures while maintaining safe working conditions. The investment in thermal scanning programs pays dividends through improved reliability, reduced maintenance costs, and enhanced safety outcomes.
Professional thermal scanning services also offer the expertise and equipment necessary to implement effective monitoring programs, as certified thermographers bring specialized knowledge that ensures accurate problem identification and appropriate response recommendations. Give us a call at Electrol PowerWhips today and let us provide you with heavy-duty and reliable power solutions.
