Short-circuit current tells only part of the story when engineers specify transfer switch equipment. The amount of current matters, but how long it stays on the switch can change whether a rating fits the application.
This becomes especially important in critical facilities where upstream protective devices may use intentional delays to preserve selective coordination. When engineers apply the withstand-duration requirements under UL 1008 Clause 9, they need to evaluate fault magnitude alongside protective-device clearing time.
Start With the Meaning of WCR
A transfer switch carries fault current until the upstream overcurrent protective device clears the fault. Because the transfer switch does not normally provide that protection itself, its short-circuit performance must coordinate with the protective device ahead of it. UL 1008 uses the term Withstand and Closing Rating to describe this capability.
The “closing” portion matters just as much as the withstand portion. A transfer switch must demonstrate acceptable performance when carrying a short circuit under the applicable test conditions. Closing onto fault current can create severe mechanical stress within the switching mechanism.
Duration Is Part of the Rating
A WCR does not become complete simply because the available fault current falls below the published kiloampere value. Engineers must also understand the basis of that rating. A time-based rating supports the application only when upstream protection clears the fault within the marked duration.
Why There Is No Universal UL 1008 Duration
One of the easiest mistakes is treating three cycles, or 0.05 seconds, as a universal UL 1008 requirement. It is not. Manufacturers can establish time-based WCRs at permitted durations through the applicable test program. They can also establish ratings around specific overcurrent protective devices.
A 0.05-second rating appears frequently on modern transfer switch equipment. At 60 Hz, that interval corresponds to three electrical cycles. Smaller transfer switches may also carry shorter-duration ratings. The rating marked for the actual equipment should always control the application.
Match the Duration to Breaker Clearing Time
The upstream protective device determines how long a downstream fault can remain on the transfer switch. An engineer therefore needs more than the breaker frame size. The trip characteristics at the available fault current determine whether the switch remains within its rated withstand duration.
If the breaker clears the fault before the transfer switch reaches its marked duration limit, the time-based WCR can support the application when the other rating conditions also match. If the breaker remains closed longer, the engineer needs a different rating basis.
The breaker can remain closed even though fault current has reached a high level. During that interval, the transfer switch continues carrying the short-circuit current.
Selective Coordination Changes the Required Exposure
Selective coordination aims to remove the smallest possible portion of an electrical system during a fault. A downstream protective device opens first while upstream equipment remains energized. This strategy helps preserve power to unaffected loads.
The benefit comes with an equipment requirement. Devices upstream of the fault must withstand the current while they wait for the downstream protection to operate. That includes a transfer switch located within the fault-current path.
A three-cycle WCR cannot support a longer intentional delay simply because the kiloampere value appears adequate. Engineers need a rating that covers the actual duration. Some transfer switches carry optional short-time WCRs specifically for this type of coordination.
Understand Short-Time Ratings Correctly
UL 1008 allows manufacturers to establish optional short-time ratings for transfer switches. These ratings support applications where the protective strategy requires a longer fault duration than a basic time-based WCR can accommodate. A 0.5-second rating represents one manufacturer-tested example used in critical power systems.
That 0.5-second value is not a universal requirement either. At 60 Hz, it equals 30 cycles. Manufacturers may offer different ratings depending on the equipment family and test program. The published rating needs to match the actual switch.
Longer duration also changes the stress placed on the equipment. Fault current produces significant mechanical forces within the current path. Thermal energy continues accumulating until protection clears the fault. For that reason, a switch may carry different current ratings at different durations.
More Time Does Not Mean More Current
Engineers should never assume that a switch with a longer short-time rating carries the same current value for every duration. Manufacturers establish each rating through testing. The current value associated with a short-time rating may differ from the switch’s shorter-duration WCR.
Know the Rating Basis Before Specifying the Switch
A transfer switch can carry multiple WCRs because UL 1008 supports different coordination approaches. One rating may use a defined duration, while another may rely on a specific breaker combination. These rating methods solve different application problems. Project teams therefore cannot substitute another breaker merely because its continuous current rating looks similar.
The same principle applies when procurement proposes a field substitution. Changing the protective device can change the WCR basis. The engineering team should review the manufacturer documentation before approving that change.
What To Verify During the Coordination Review
A strong review starts with the available fault-current calculation at the transfer switch. From there, the engineer identifies the protective device that will interrupt a downstream fault. The study then determines how long that fault can remain before the protective device clears it.
Before finalizing the application, confirm:
- Available fault current at the transfer switch
- System voltage at the installation point
- Published WCR for the selected transfer switch
- Duration associated with that rating
- Upstream protective device used in the design
- Actual protection settings
- Fault-clearing time at the calculated current
- Manufacturer restrictions tied to the WCR
This process keeps the switch selection tied to actual system conditions, while giving reviewers a clear basis for confirming the design.
Keep PDU and Data Center Cables in the Design

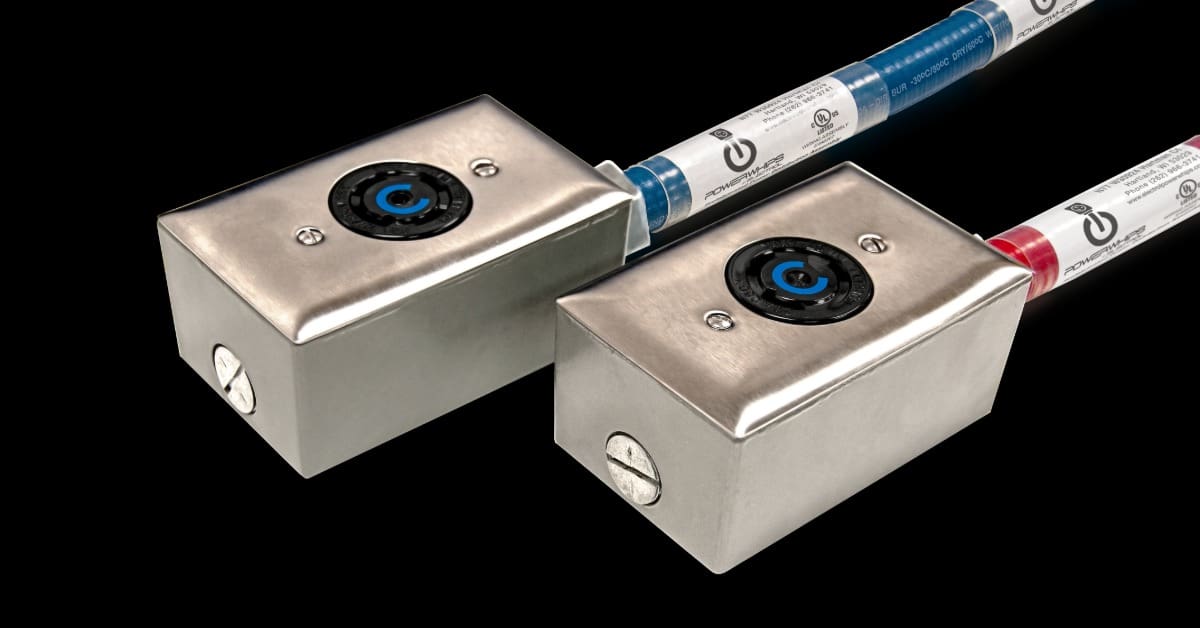

UL 1008 WCR requirements apply to transfer switch equipment. They do not establish the short-circuit rating of a downstream power cable or power whip. Keeping that boundary clear prevents teams from extending an upstream equipment rating to components that the UL 1008 test does not cover.

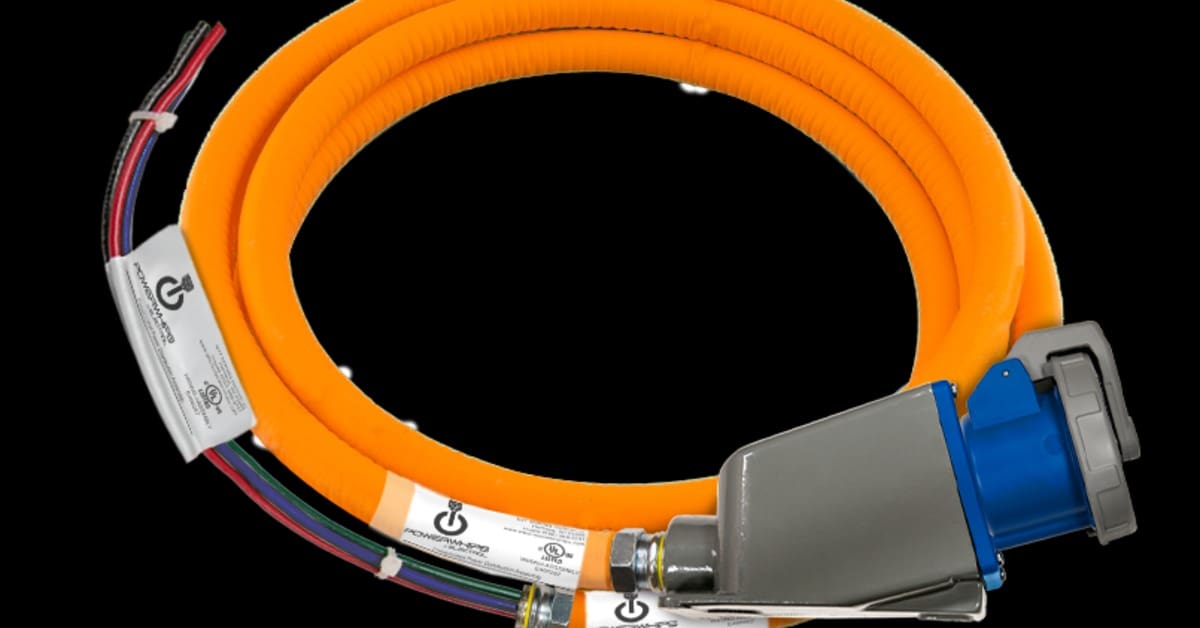

Once power leaves the upstream distribution equipment, the project still needs dependable connections to the systems serving the data hall. PDU power cables and other data center cable assemblies form part of that downstream pathway. Their specifications should reflect the electrical requirements of the circuit they serve.
Build the Power Path
Engineers applying withstand-duration requirements under UL 1008 Clause 9 should start with the fault study. They need to establish the current that can reach the transfer switch and determine how long the upstream protection allows that current to remain. The selected WCR then needs to cover those conditions under the manufacturer’s published rating basis.
The next step is carrying dependable power toward the data hall with cable assemblies that fit the actual installation. Electrol PowerWhips offers data center power cables built around demanding power distribution requirements. Contact Electrol PowerWhips to discuss a cable solution that fits your data center power strategy and supports reliable connections downstream.
